Customized Dongfeng 6*4 LHD/RHD 25tons sink-style mobile crane truck for sale, factory sale best price crane truck,

    Buy cheap Customized Dongfeng 6*4 LHD/RHD 25tons sink-style mobile crane truck for sale, factory sale best price crane truck, from wholesalers

    Buy cheap Customized Dongfeng 6*4 LHD/RHD 25tons sink-style mobile crane truck for sale, factory sale best price crane truck, from wholesalers
    • Buy cheap Customized Dongfeng 6*4 LHD/RHD 25tons sink-style mobile crane truck for sale, factory sale best price crane truck, from wholesalers
    • Buy cheap Customized Dongfeng 6*4 LHD/RHD 25tons sink-style mobile crane truck for sale, factory sale best price crane truck, from wholesalers
    • Buy cheap Customized Dongfeng 6*4 LHD/RHD 25tons sink-style mobile crane truck for sale, factory sale best price crane truck, from wholesalers
    • Buy cheap Customized Dongfeng 6*4 LHD/RHD 25tons sink-style mobile crane truck for sale, factory sale best price crane truck, from wholesalers

    Customized Dongfeng 6*4 LHD/RHD 25tons sink-style mobile crane truck for sale, factory sale best price crane truck,

    Ask Lasest Price
    Brand Name : CLW
    Certification : CCC, ISO 9001
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 20units/month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    Customized Dongfeng 6*4 LHD/RHD 25tons sink-style mobile crane truck for sale, factory sale best price crane truck,

    Customized Dongfeng 6*4 LHD/RHD 25tons sink-style mobile crane truck for sale, factory sale best price crane truck,


    Total mass: 25000kgs

    Overall dimension (L*W*H): 12480*2500*3700 (mm)

    Wheelbase: 4350+1300mm

    Engine model: YC6JA240-50 240 yuchai 240hp diesel engine

    Main/auxiliary hoist: 25T/25T


    Mobile crane is also called truck crane, a kind of crane mounted on general truck chassis or special purpose truck chassis. The driving cabin and lifting operation cab are setted separately. The advantage of this kind of mobile truck crane is flexibility and moving quickly; while the weakness is work must be outrigger, cannot load driving and at the same time cannot work on the a soft or muddy field. And this kind of mobile truck crane is widely used for Engineering Constructions, such as Roads, bridges, buildings, emergency services, etc. The general engineering team, the construction industry and the electric power installment department, all needs the automobile crane.

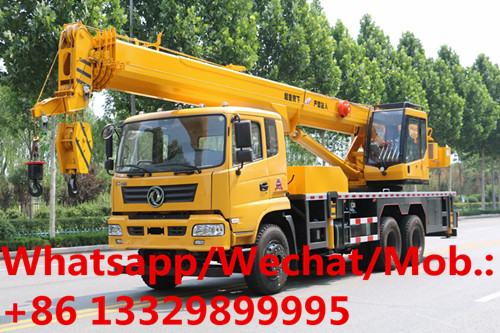

    More pictures of dongfeng 6*4 LHD 25tons sink-style mobile crane truck manufactured by Chengli Special Automobile Co., Ltd. as below.


    Main technical parameters of Dongfeng 6*4 25T sink-style mobile crane truck manufactured by Chengli Special Automobile Co., Ltd. is as below.

    Main technical parameters of dongfeng sink-style mobile crane truck as below.
    Total mass25000kgMax lifting mass(kg)25000
    Engine modelYC6JA240-50 yuchai 240hp diesel engineMain/auxiliary hoist25T/25T
    Displacement/ power (ml/kw)6870/177Crane boom9.6m 5 sections veneer arm
    GearboxFastgearFull crane boom length (m)41
    Overall dimension(L*W*H)(mm)12480*2500*3700Big boom dimension(mm)675*550
    Wheelbase4350+1300mmBack displacement topStandard
    Tires pec1100R20 rail tiresSlewing bearingexternal gear
    Front/rear axle(kgs)7000/9000/9000Slewing mechanism360°Arbitrary rotation
    Outrigger Longitudinal/transverse span(mm)6200/6900Beamnew torque-fighting van beam
    Steering typeHydraulic steeringPower pumpTriple-pump
    BrakingAir cut brakingOperation roomAdvanced operation room
    Others: double Legs, Fully covered floor, double-sided operation, negative angle, electronic throttle
    Chosen part: motor, computer, weighing apparatus, camera, rotating basket, air conditioning, level

    Main technical parameters of dongfeng 25T mobile crane truck for sale as below

    Main technical parameters
    Product nameDongfeng 25T Mobile crane truck for sale
    Total mass(Kg)25000Overall dimension(L*W*H)(mm)12480*2500*3700
    Curb mass(Kg)24805,24870Driver cab seated person2,3
    Approach/departure angle(°)24/10Front/rear suspension(mm)1450/3350
    Axle load3wheelbase(mm)4350+1300
    Axle load(Kg)7000/9000/9000Max speed(Km/h)90
    Chassis main parameters
    Truck chassis modelEQ1250GLJ2ManufacturerDongfeng company
