| Brand Name : | dongfeng |
| Certification : | CCC, ISO 9001 |
| Price : | negotiable |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 20units/month |
| Delivery Time : | 20 days |
customized brand new dongfeng teshang 270hp diesel 12tons XCMG telescopic crane boom mounted on cargo truck for sale
main technical advantages of CLW brand mobile truck with crane
manufactured by Chengli Special Automobile Co., Ltd. as below
1. Truck crane is specially designed and produced on the basis of common cargo
trucks or dump trucks, but need strong chassis frame with high
strength to support the crane when lifting heavy cargos.
2. Our product type is available in 1 tons~200 tons capacity crane, correspondingly the
truck chassis wheel drive from 4x2/4x4/6x2/6x4/6x6/8x4/x10x4.
3. Special crane design:common the end of crane is a hook linked with stee rope, but we can
mount a gripping device, holder or other special designed mechanism
to achieve the functions of gripping action to hold cargos, not
always hooking cargo.
4. Hydraulic system: all the actions of crane and outriggers are driving by hydraulic
system, high quality sealed oil cylinder and hydraulic pipe,etc.
5. Control system: for lifting capacity under 6 tons, crane is controlled by the
operation handles on both sides; over 8 tons, on the top of crane,
there is a seat and operation handles on the top of crane.
6. Cargo box: box length from 3meters to 10 meters and can produce according to
your special requirements, you can check from the following photos
below.
If you're interested in our truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com

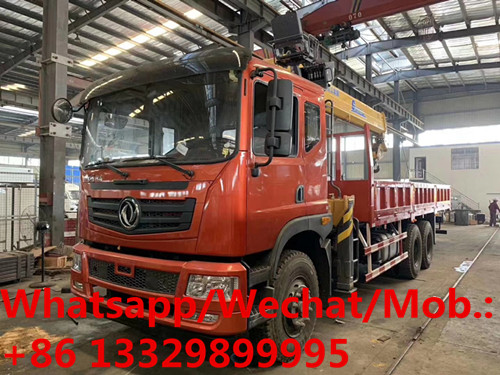

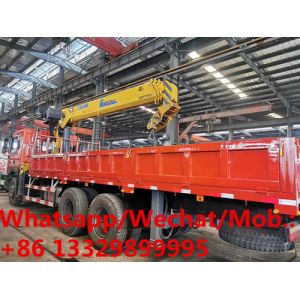

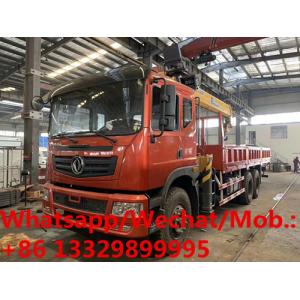

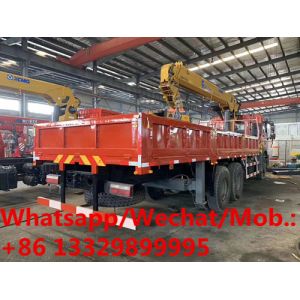

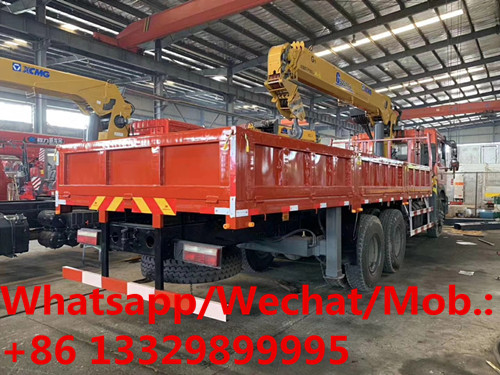

DONGFENG TESHANG 6*4 LHD cargo truck with 12tons telescopic crane boom, adopts dongfeng teshang 6*4 LHD luxurious driver cab, 4750+1300mm wheelbase, fastgear 9 speed gearbox, 5.5tons front axle/11.5tons double rear axles, 10.00R20 rail tires, YC6A270-50 Yuchai Euro Ⅴ diesel engine, etc.
The overall dimension of Dongfeng teshang 6*4 LHD 12tosn truck with crane is 10550×2490×3850,3650(mm), and the dimension of the cargo box body is 7200*2400*550(mm). clients choose to install XCMG brand 12tons telescopic crane boom as below.

HOT SALE! dongfeng 270hp diesel 12tons telescopic crane boom mounted on truck

high quality and competitive price Dongfeng 12tons truck with crane for sale

The specification of dongfeng teshang 6*4 LHD 270hp diesel truck with crane as below.
| Product name | dongfeng teshang 6*4 LHD 270hp diesel truck with crane | |
| Chassis type | EQ1250GLJ | |
| Parameters | Overall dimension length/width/height (mm) | 10550×2490×3850,3650 |
| Cargo body dimension (L*W*H)(mm) | 7200*2400*550(mm) | |
| GVW(kg) | 25000 (Kg) | |
| Kerb Mass(kg) | 14970 (Kg) | |
| Rated mass(kg) | 9900 (Kg) | |
| Approach angle/ Departure angle(mm) | 24/12 (°) | |
| Front suspension/rear suspension(mm) | 1250/3250 | |
| Fuel Type | diesel | |
| Max Speed | 90 | |
| Engine | Type | YC6A240-50 YC6A270-50 |
| Displacement/Power | 7520ml 7520ml | |
| Rated power | 177KW 199KW | |
| Manufacturer | YUCHAI | |
| Chassis | Drive Type | 6*4 |
| Wheelbase(mm) | 4750+1300mm | |
| Tread(front/rear) | 1960; 1860/1860 (mm) | |
| Transmission | Fastgear 9 speed manual gearbox | |
| Braking system | Air braking | |
| Cab | Dongfeng Teshang 6*4 LHD luxurious driver cab | |
| Number of spring axle(front/rear) | 9/10+3 | |
| Tire Type | 10.00R20 | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 7500*2400*550(mm) |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 2mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install XCMG brand12tons 4 sections telescopic crane boom | |
| Lifting height | 13m | |
| Working radius | 9.78m | |
| The color of the whole truck is upon request. | ||
|
