New hydraulic mobile SHACMAN 14tons telescopic boom grove grab back
installed truck mounted crane remote control 14ton crane cheap
price
As a professional cargo truck crane supplier in China, we Chengli
Special Automobile Co., Ltd. manufacture the crane boom is from 2
ton to 160 ton. The drive type of our truck crane for sale are 4x2,
6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic
boom truck mounted crane, knuckle boom truck mounted crane.Also,
Our crane trucks are 360 degree roatate. It is with high quality,
long life, high speed, etc. The crane for truck can be crane,
chengli crane, sany crane, unic crane, kanglim crane, etc.
Truck crane ,also called boom truck crane,mobile truck crane , truck mounted crane , hydraulic folding truck
crane,telescopic straight boom crane,truck with crane , crane
lorry,hydraulic arm crane for trucks,pickup truck mounted
crane,light truck with crane,folding arm hydraulic lift
platform,hydraulic crane telescopic boom,mobile crane price ,self loader truck with boom crane,new forland lorry truck mounted
crane,telescopic boom truck mounted crane,flatbed knuckle boom
truck crane,6 wheelers truck with crane boom truck cranes sale etc.
1.We are professional manufacturers to do the special vehicles . We are supply all brands of special truck , north benz(beiben) , Faw , Foton , Shaanxi ,Sinotruck , Jac
, Jmc , Isuzu ,Dongfeng all available .
2.the drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4
3.We can provide LHD (left hand drive) or RHD (right hand drive) vehicles .
A crane mounted on a truck carrier provides the mobility for this
type of crane. This crane has
two parts: the carrier, often referred to as the Lower, and the
lifting component which includes the
boom, referred to as the Upper. These are mated tog through a
turntable, allowing the upper
to swing from side to side. These modern hydraulic truck cranes are
usually single-engine machines, with the same engine powering the
undercarriage and the crane. The upper is
usually powered via hydraulics run through the turntable from the
pump mounted on the lower. In
older model designs of hydraulic truck cranes, there were two
engines. One in the lower pulled the
crane down the road and ran a hydraulic pump for the outriggers and
jacks. The one in the upper ran the upper through a hydraulic pump
of its own. Many older operators favor the two-engine system due to
leaking seals in the turntable of aging newer design cranes.
Customized SHACMAN brand 8*4 LHD 14T knuckle crane boom mounted on
cargo truck for sale,
Customized SHACMAN brand 8*4 LHD 14T knuckle crane boom mounted on
cargo truck adopts Shacman M series low-top luxurious driver cab,
2100+4575+1400mm wheelbase,
SHACMAN brand 8*4 LHD 16T knuckle crane boom mounted on truck for
sale, 10JSD180+QH50 gearbox, WP10.380E22 380hp diesel Euro 2 engine, MAN 9.5T front axle, 400L
aluminum alloy tanker, 12.00R20 rail tires, etc.
Clients choose to install CLW Brand high quality 30tons knuckle
crane boom. The cargo body dimension (L*W*H): 8000x2450x600 (mm). There are rear manual ladders at the rear part of the cargo
body. Choosing to install XCMG brand 14T knuckle crane boom (the
working height is 14m and the working radius is 12.1m, full
rotation with aerial operation seat).
If you're interested in our truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp: 0086 13329899995.
Website: www.trucksinchina.com

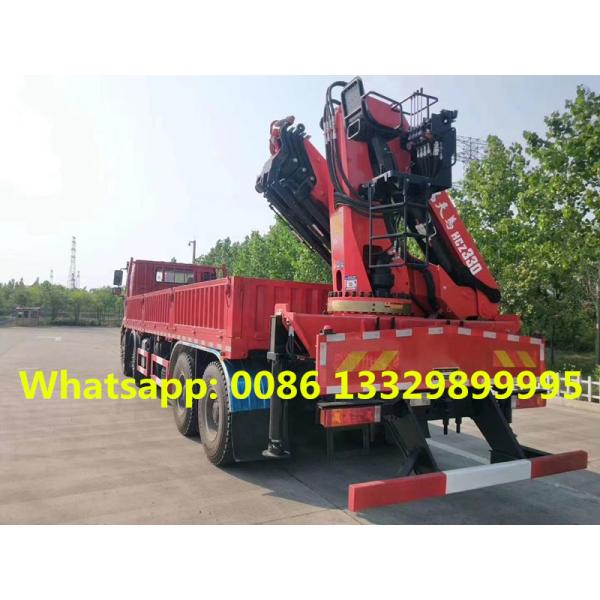

SHACMAN brand 8*4 14T cargo truck with crane for sale
The specification of SHACMAN brand 8*4 LHD 14tons knuckle crane
boom mounted on truck as below
| Product name | SHACMAN brand 8*4 LHD 14tons knuckle crane boom mounted on truck
for sale |
| Chassis type | SX1310 |
| Parameters | Overall dimension length/width/height (mm) | 12000×2550×3980 |
| Cargo body dimension (L*W*H)(mm) | 8000×2450×600,800 |
| GVW(kg) | 31000 (Kg) |
| Kerb Mass(kg) | 20800 (Kg) |
| Rated mass(kg) | 10070,10005 (Kg) |
| Approach angle/ Departure angle(mm) | 16/10 (°) |
| Front suspension/rear suspension(mm) | 1525/2400 |
| Fuel Type | diesel |
| Max Speed | 90 |
| Engine | Type | WP10.380E22 |
| Displacement/Power(kw) | 9726ml/280KW/380hp |
| Manufacturer | WEICHAI |
| Chassis | Drive Type | 8*4 |
| Wheelbase(mm) | 2100+4575+1400 |
| Tread(front/rear) | 2036/2036, 1860/1860 (mm) |
| Transmission | 10JSD180+QH50 manual gearbox |
| Braking system | Air braking |
| Cab | SHACMAN M3000 luxurious driver cab |
| Number of spring axle(front/rear) | 10/10/12 |
| Tire Type | 12.00R20 |
| Upper part(cargo van and crane boom) main parameters |
| Upper body | Cargo body dimension | 8000x2450x600 |
| Material | Carbon steel |
| Painting | Upon request |
| Crane boom main parameters |
| Crane boom | Choose to install CLW brand 14T 5 sections knuckle crane boom |
| Lifting height | 14m |
| Working radius | 12.1m |
| The color of the whole truck is upon request. |
