Customized ISUZU 700P 5.4m length day old chicks transported van for sale 40,000 babychicks van transported vehicle

    Buy cheap Customized ISUZU 700P 5.4m length day old chicks transported van for sale 40,000 babychicks van transported vehicle from wholesalers

    Buy cheap Customized ISUZU 700P 5.4m length day old chicks transported van for sale 40,000 babychicks van transported vehicle from wholesalers
    • Buy cheap Customized ISUZU 700P 5.4m length day old chicks transported van for sale 40,000 babychicks van transported vehicle from wholesalers
    • Buy cheap Customized ISUZU 700P 5.4m length day old chicks transported van for sale 40,000 babychicks van transported vehicle from wholesalers
    • Buy cheap Customized ISUZU 700P 5.4m length day old chicks transported van for sale 40,000 babychicks van transported vehicle from wholesalers
    • Buy cheap Customized ISUZU 700P 5.4m length day old chicks transported van for sale 40,000 babychicks van transported vehicle from wholesalers
    • Buy cheap Customized ISUZU 700P 5.4m length day old chicks transported van for sale 40,000 babychicks van transported vehicle from wholesalers

    Customized ISUZU 700P 5.4m length day old chicks transported van for sale 40,000 babychicks van transported vehicle

    Ask Lasest Price
    Brand Name : CLW
    Certification : CCC, ISO 9001
    Price : negoitiable
    Payment Terms : T/T, L/C
    Supply Ability : 20units/month
    Delivery Time : 20days
    • Product Details
    • Company Profile

    Customized ISUZU 700P 5.4m length day old chicks transported van for sale 40,000 babychicks van transported vehicle


    Customized ISUZU Brand 700P 5.4m length day old chicks transported truck for sale, 40,000 babychicks van transported vehicle ISUZU brand for sale


    Day old chciks transported truck is also called baby chick truck, young chicks transported truck. There are several electronic ventilator fans on the top, and the left-right sides with several slidable windows to keep air ventilated. There is cooling reefer, adjusted the temperature freely, suitable for transporting farm poultry, etc. It is mainly for professional transporting day old chicks, day old ducks, baby goose, flowers, seedlings, etc. a good tools to improve efficiency and reduce transporting cost. The advantages of the day old ducks truck are rainproof, dustproof, theft-proof, environmental protection, high efficiency, ventilating, insulation, large loading capacity, etc.



    The baby chick trucks manufactured by Chengli Special Automobile Co., Ltd. adopts high quality Fiberglass Reinforced Plastic (FRP) for exterior and interior layer, and the middle insulation layer with 80mm PU foam sheets.

    And we can customized the day old chick trucks, installed with cooling system, heating system, Ventilation system, windows and fans, etc. More information, please feel free to contact with Ms. Anita.

    Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of van truck in China. With many years’ development, Chengli Special Automobile Co., Ltd. could supply refrigerated truck, insualtion body van box, cargo van truck, baby chick transported truck, etc. And our CLW brand van truck have been exported to many countries all over the world.


    Customized ISUZU brand 190hp diesel day old chick transported vehicle, adopts ISUZU 700P 4*2 LHD single row driver cab, ISUZU MLD 6 speed manual gearbox, 4tons front axle/7tons rear axle, 35/75R17.5 rail tires, original air conditioner and power steering, air cut braking, etc.


    The dimension(L*W*H) of ISUZU 700P 190hp Euro 5 diesel day old chicks transported truck is 5200×2200×2100(mm), while the overall dimension(L*W*H) of ISUZU 700P day old chicks truck is 7480*2380*3370(mm). Client choose to install USA CARRIER/THERMO KING refrigerated reefer unit (the lowest temperature is up to -15 degree.)

    Details of ISUZU 700P day old chicks transported truck is as below.

    1, high quality FRP(Fiber Glass-Reinforced Plastics) for the interior and exterior layer of the insulation body van box; and the middle insulation material with 80mm thickness high-density PU Foam.
    2, the door locks and door frame with stainless steel material; the covered edge with aluminum alloy material; the truck floor with anti-slip diamond aluminum plate.
    3,5 sets of blind windows with sliding doors for the left and right van sides
    4, each 2 sets of electronic ventilator fans for the front and rear plate; each 4 sets of electronic ventilator fans for the van top

    5, Top mounted sky window* 4 sets
    6, two line of air duct installed on the floor air flow
    7, China made high quality USA CARRIER/THERMO KING vehicle-powered refrigerated reefer( the lowest temperature inside the cold room box up to -15 degree, adjusted at the driver cab)
    8, two line of cold air ducts on both van body.


    If you're interested in our babychicks transported truck, please send email to truck0011@163.com or talk to Anita by Whatsapp: 0086 13329899995.

    Website: www.trucksinchina.com


    More pictures of ISUZU day old chick transported truck is as below.

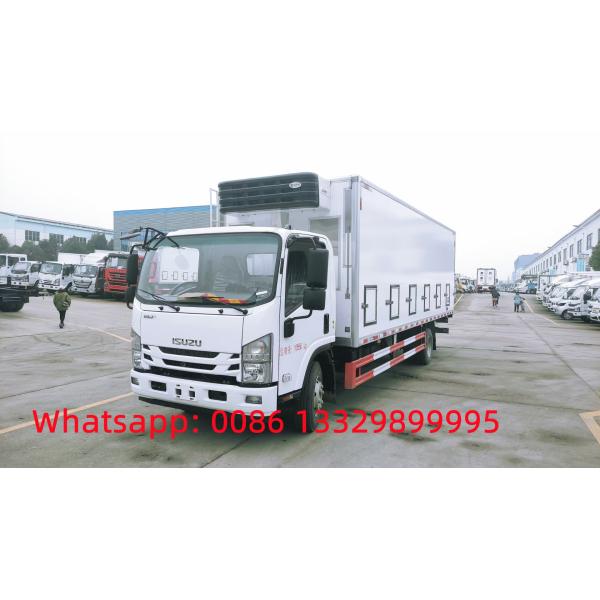

    ISUZU brand 700P 5.4m length day old chicks transported truck for sale

    Chinamade ISUZU babychicks transported van truck with CARRIER refrigerated reefer unit for 40,000 day old chicks transportation


    Main technical parameters of ISUZU Brand 700P day old chicks transported truck is as below.

    Overview
    Product nameIsuzu Brand 4*2 LHD day old chick transported truck(5tons)
    Dimension(L*W*H)(mm)7480*2380*3370
    Total mass(kgs)10000
    Rated payload(kgs)4605
    Kerb weight(kgs)5200
    Driver cab seats3(driver included)
    Approach/departure angle(°)17/13
    The parameters of chassis
    Truck chassis manufacturerISUZU
    Driving type4*2 LHD(Left hand drive)
    Wheelbase(mm)4175
    GearboxISUZU MLD 6speed manual gearbox
    Front/rear track(mm)1680/1650
    Tyre specification235/75R17.5
    Front/rear suspension(mm)1110/2195
    Leaf Spring number8/10+6
    Driver cab A/CEquipped
    The parameters of engine
    Engine manufactuer/modelISUZU 4HK1-TC51
    Engine rated power141hp/96KW
    Fuel typeDiesel/oil
    Displacement/capacity(ml)5193
    Emission standardEuro 5
    Cylinders4 cylinder in line, high-pressure common rail
    Max .torque5100N.m
    Velocity1600rpm
    The parameters of van body
    Van box body dimension(L*W*H)(mm)5200×2200×2100
    Material2.2mm external fiberglass, internal 2mm stainless steel, sandwish 80mm XPS
    Rubber sealingEquipped
    Van body skeleton rimAluminum
    Doorframe and locksStainless steel material
    LightingLED lights
    Cooling systemCARRIER reefer unit(model: C-500)

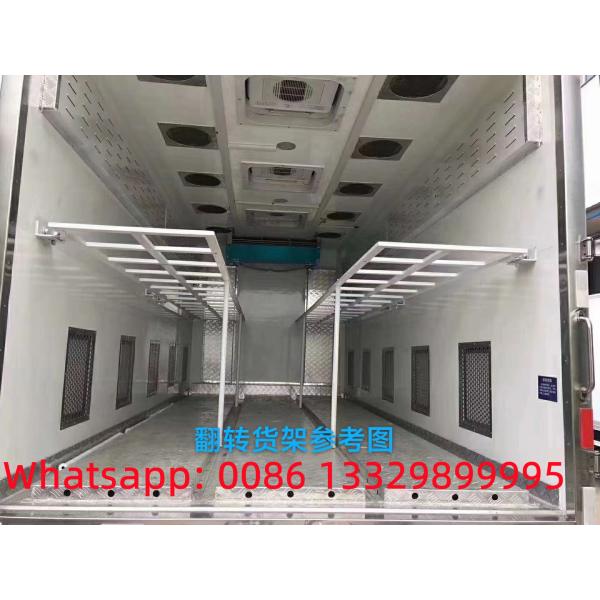

    VentilationsBoth van body sides total with 5 windows(4*2), ceiling 4 sky windows, ceiling ventilations fans 8 pcs(4*2), rear door ventilations 4pcs, upper sides ventilation vent, floor ventilation vents
    ShelvesTwo sides and tiltable
