Customized SINO TRUK HOWO LHD 160hp diesel 10cbm asphalt distributing vehicle for sale, HOWO bitumen distributing vehic

    Buy cheap Customized SINO TRUK HOWO LHD 160hp diesel 10cbm asphalt distributing vehicle for sale, HOWO bitumen distributing vehic from wholesalers

    Buy cheap Customized SINO TRUK HOWO LHD 160hp diesel 10cbm asphalt distributing vehicle for sale, HOWO bitumen distributing vehic from wholesalers
    • Buy cheap Customized SINO TRUK HOWO LHD 160hp diesel 10cbm asphalt distributing vehicle for sale, HOWO bitumen distributing vehic from wholesalers
    • Buy cheap Customized SINO TRUK HOWO LHD 160hp diesel 10cbm asphalt distributing vehicle for sale, HOWO bitumen distributing vehic from wholesalers
    • Buy cheap Customized SINO TRUK HOWO LHD 160hp diesel 10cbm asphalt distributing vehicle for sale, HOWO bitumen distributing vehic from wholesalers
    • Buy cheap Customized SINO TRUK HOWO LHD 160hp diesel 10cbm asphalt distributing vehicle for sale, HOWO bitumen distributing vehic from wholesalers

    Customized SINO TRUK HOWO LHD 160hp diesel 10cbm asphalt distributing vehicle for sale, HOWO bitumen distributing vehic

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5185GLQZ3
    Certification : CCC
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 20 units/month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Customized SINO TRUK HOWO LHD 160hp diesel 10cbm asphalt distributing vehicle for sale, HOWO bitumen distributing vehic


    Customized SINO TRUK HOWO 4*2 160hp diesel 10cbm asphalt distributing vehicle for sale, HOWO bitumen distributing vehicle for sale


    Customized SINO TRUK HOWO 4*2 LHD asphalt tanker truck, adopts SINO TRUK HOWO LHD 2080mm one row and a half driver cab, YC4E160-33 160hp diesel engine, 6 speed gearbox, 3.6tons front axle/10.5tons rear axle, 9.00R20 rail tires, etc.


    The devices of SINO TRUK HOWO brand 4*2 LHD 10CBM intelligent type asphalt tanker truck manufactured by Chengli Special Automobile Co., Ltd. is as below.


    1, the asphalt pump adopts high quality QGB950 (high viscosity asphalt pump, 950L/min).

    2, hydraulic system: Proportional valve (Taiwan EFBG-03-160-HF); Automatic reversing valve and overflow valve; radiator adopts Risheng brand; the model of hydraulic motor for asphalt pump: 05-110-BD31; hydraulic pump model: CBQ550-L or Power take off after engine GPC4-50R.

    3, control way: Intelligent touch screen computer control at the driver cab; control system: (Siemens, Germany), 36 sets intelligent asphalt spraying nozzles (one controls one).

    4, Heating method: Burner (Italy imported Riello brand burner model G20) + Automatic heating of heat transfer oil

    5, gasoline generator unit: 6KW

    6, spreading amount: 0.25-3.5L/㎡;

    7, asphalt distributing width: 4.5m, 48 sets spraying nozzles for 6m spreading width is selective (10000RMB additional).

    8, Distributing medium: emulsified asphalt, hot asphalt, SBS hot asphalt, etc.


    If you're interested in our HOWO 10,000Liters asphalt tanker truck, please send email to truck0011@163.com; or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.

    Website: www.trucksinchina.com


    Performance parameter of SINO TRUK HOWO LHD 10cbm asphalt tanker truck manufactured by Chengli Special Automobile Co., Ltd. as below.

    Truck model: CLW5185GLQZ3

    Total mass: 18000kg

    Curb mass: 9180kg

    Overall dimension(L*W*H):8450×2500×3060mm

    Spreading width: 4700mm

    Distance between nozzles: 125mm

    Asphalt spreading amount: 0.2~3.5L/m2

    Working speed:1.5--20km/h

    Heating way: Italian imported burner heating G20(200,000 Kilocalorie/hour)

    Spreading medium: emulsified asphalt, hot asphalt, SBS BS modified pitch, modified emulsified asphalt

    Spreading inaccuracy:±2%

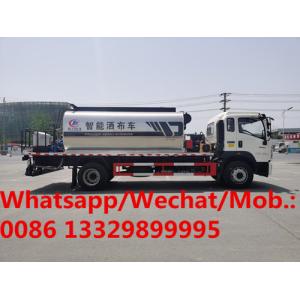

    More pictures of SINO TRUK HOWO 4*2 LHD 10,000Liters asphalt tanker distributing vehicle as below.

    HOT SALE! 10,000Liters asphalt tanker truck for sale

    10,000Liters bitumen distributing tanker truck for sale

    customized HOWO 10CBM asphalt tanker truck for sale


    (三)main parts of asphalt tanker truck as below

    ItemNameModel, specsAffiliation SystemRemark
    1Truck chassisZZ1167Chassis250mm boom, power steering and air cut baking, etc.
    2EngineYC4E160-33
    3Gearbox6 speed gearbox, manual
    4Tires specification9.00R20
    5Front/rear axleFront axle: 4.5T;rear axle:10T,
    5Asphalt tanker volume10cbmTankerHigh quality carbon steel
    6Thickness of insulating layer50mm thicknessRock wool insulation
    7Covered with stainless steel1mm thickness1mm stainless steel plate
    8PTOSpecialized for spreading vehicleSource of work motivation
    9Hydraulic pumpCBQ550-LHydraulic systemTianjin
    9Proportional ValveEFRD-G03-160-5-31Northman
    10SOLENOID Directional ValveSWH-G03-D24-20Northman
    11overflow valveMT-02Northman
    12radiatorAH1012TGUANGZHHOU Hercules
    11Motor for hydraulic pump05-110BD40Tianjin/ningbo
    12Asphalt pumpQGB950Asphalt spreading systemshanggui, 950L/min
    13Nozzles nos.36setsControl mode:1 controls 1
    14Handlance5m length hose+1.5m length manual nozzlecorner spraying
    15BurnerG20(200,000万kilocalorie/hour)Heating systemItaly Riello
    16Heat conducting oil pumpRY32-32-160Hebei
    17Heat conducting oil pump motor380V-2.2KW-2 gradeAnhui liu’an
    18Control system modeDriver Cab touch-screen computer control +rear working platform control(reserve)Controlling systemThe control system adopts USA cylindro controller.,faster and smoother operation, low failure rate
    19Velocity sensorNi5-G12GERMAN TURCK
    20Temperature controllerPt100SHANGHAI XINGHUI
    21GeneratorLT10000EN3-4Power systemLutian 6kw gasoline generator unit
    Quality Customized SINO TRUK HOWO LHD 160hp diesel 10cbm asphalt distributing vehicle for sale, HOWO bitumen distributing vehic for sale
