    23000L dongfeng double rear axles oil truck

    Ask Lasest Price
    Brand Name : Dongfeng
    Price : 20,000-50,000USD/UNIT
    Delivery Time : 30 days
    Payment Terms : T/T, L/C
    Supply Ability : 50 units/month
    • Product Details
    • Company Profile

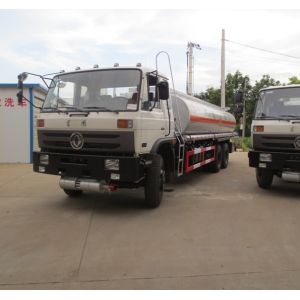

    23000L dongfeng double rear axles oil truck




    Technical parameters of 23000L dongfeng double rear axles oil truck for your reference


    Main Technical Parameter

    Product Name

    Oil TankTruck

    Gross Vehicle Weight (kg)

    25000

    Curb Weight (kg)

    9805

    Cab Allowed Persons

    3

    Axle No.

    3

    Wheelbase (mm)

    4350+1300

    App/Dep Angle(º)

    27/12

    Axle Load(kg)

    7000/18000(Parallel Installed)

    F/R Suspension(mm)

    1245/2805

    Overall Dimension(mm)

    9700x2490x3450

    Chassis Technical Parameter

    Chassis Model

    EQ1258KB3GJ

    Chassis Name

    TruckChassis

    Chassis Brand

    Dongfeng

    Manufacturer

    Dongfeng Automobile Co.,Ltd

    Overall Dimension (mm)

    9360×2462×2880

    Tyre No.

    10with 1 spare tyre

    App./ Dep. Angle(º)

    32/14

    Tyre Spec.

    10.00-20

    Leaf Spring No.

    8/13

    Front Track (mm)

    1940

    Fuel Type

    Diesel

    Rear Track (mm)

    1860/1860

    Drive Type

    6x4

    Brake System

    Air brake

    F/R Suspension(mm)

    1245/2465

    Axle Load(kg)

    7000/18000(parallel installed)

    Engine Technical Parameter

    Engine Model

    B210 33

    Emission Standard

    EuroIII

    Displacement ( ml)

    5900

    Power

    155kw/210hp

    Superstructure Parameter

    Tank Capacity(L)

    23,000

    Tank Thickness(mm)

    5.0

    Head Thickness(mm)

    6.0

    Tank Material

    Carbon Steel

    Remarks:***Basic equipments: PTO,gravity-discharge valve,hose,access ladder, anti-slip walkway,

    handrail, manhole, fire extinguisher, side lamps and reflective stickers etc.

    ***Optional: ABS, Gear Pump,Refueling machine,emergency valve, flow meter, nozzle, compartment

    quantity; epoxy coating inside the tanker; Tank material: carbon steel, stainless steel, aluminums alloy…..

    Bottom loading system…..

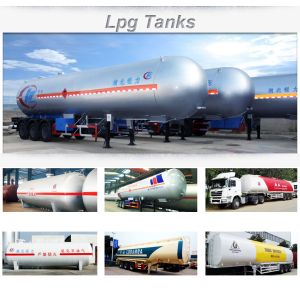

    Besides oil trucks, we also manuacture many other special vehicles, such as garbage trucks, aerial working truck, chemical liquid truck, crane truck, LPG truck, water truck, road sweeper, concrete mixer truck, flatbed truck, road wrecker towing truck, trailers,etc. Following is the pictures of our trucks.

    More information, please feel free to contact with us.
